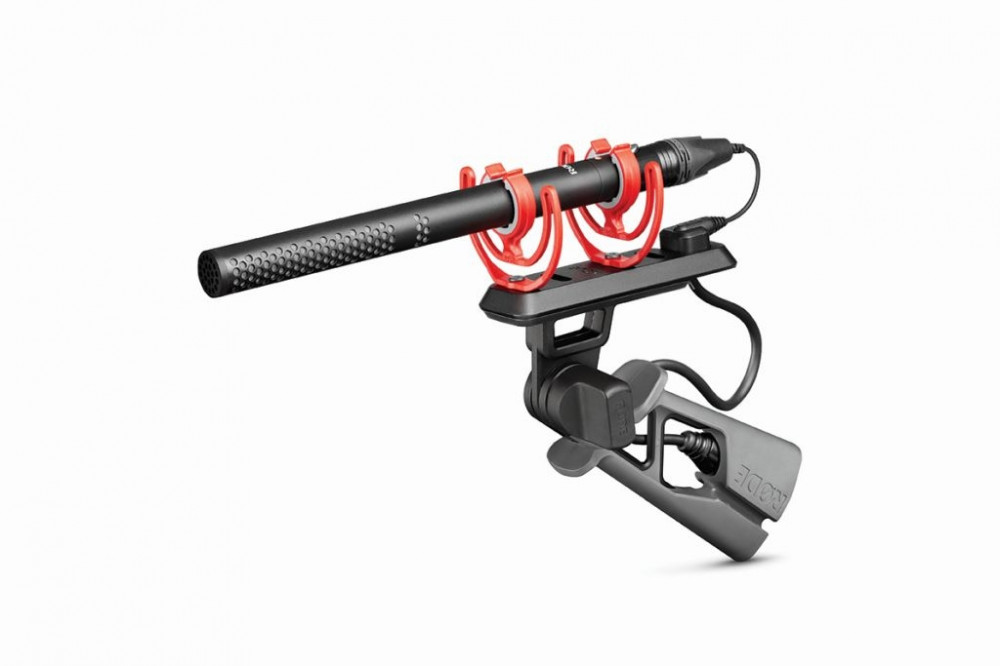

The NTG5 is an ultra-lightweight professional shotgun microphone that is ideal for use in the most demanding recording applications. Featuring a revolutionary acoustic design, tightly controlled frequency response, smooth off-axis response, and very low self-noise (just 10dBA), the NTG5 sounds spectacular in a wide variety of applications, particularly location recording and filmmaking scenarios where superlative audio is imperative.
The NTG5 features a revolutionary acoustic design unlike any other shotgun microphone. Circular acoustic perforations are utilised in place of linear slots, delivering greater acoustic transparency and a natural, uncoloured sound for superb performance in a wide variety of recording applications.

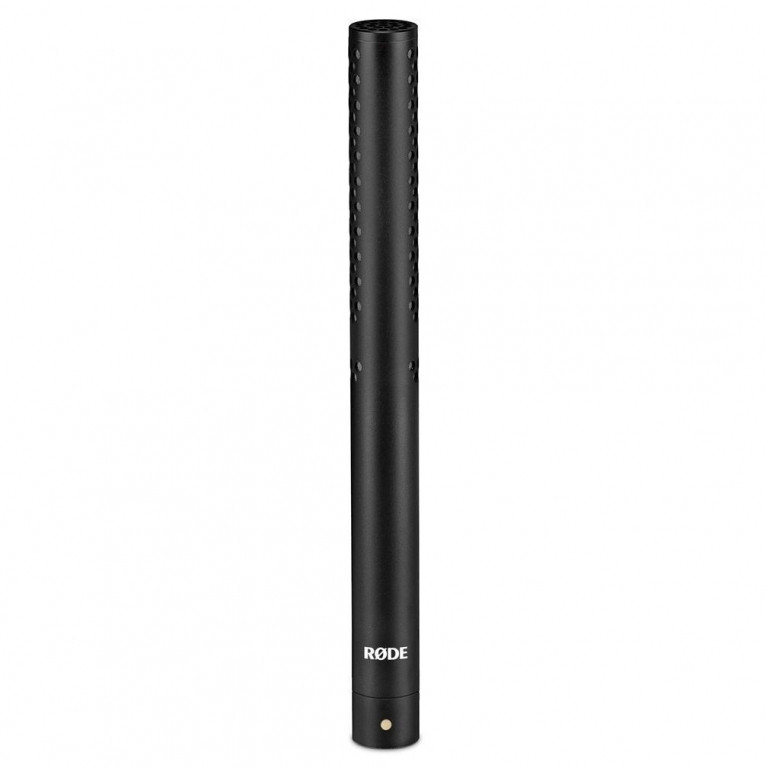

The NTG5 features a short, super-lightweight aluminium body (just 76g!), making it one of the most compact professional shotgun mics available – a dream for boom operators who find themselves on long shoots, or filmmakers and sound recordists looking for a more portable and lightweight rig that delivers spectacular, broadcast-grade audio.
With a tightly controlled frequency response, low self-noise, highly directional supercardioid polar pattern, and smooth off-axis response, the NTG5 sounds spectacular in a wide variety of applications. It also boasts RF-bias technology and conformal coating on the electronics, which protect the microphone from moisture and humidity and ensure it is incredibly reliable even iin harsh environmental conditions. The NTG5 is the perfect mic for location recording and demanding filmmaking scenarios where superlative audio is imperative. No excuses.
Acoustic & Electrical Specifications
Acoustic Principle
RF-bias condenser
Active Electronics
RF-bias demodulation
Polar Pattern
Supercardioid shotgun
Frequency Response
20 Hz - 20 kHz
Frequency Response
80 Hz - 20 kHz ±3 dB
Signal-to-Noise Ratio
84 dB
Equivalent Noise
10 dB SPL (A-weighted, as per IEC651)
Input SPL @ 1% THD
130 dB SPL (1kHz @ 1% THD, 600 Ω load)
Power Requirements
2 mA @ 48V phantom power
Sensitivity
-23.5 dB re. 1 Volt/Pascal or Better (66 mV @ 94 dB SPL @ 1 kHz)
Mechanical Specifications
Dimensions (mm)
NTG5: 203 (H) x 19 (W) x 19 (D)
PG2-R: 240 (H) x 60 (W) x 117 (D)
Box Contains
1 x NTG5

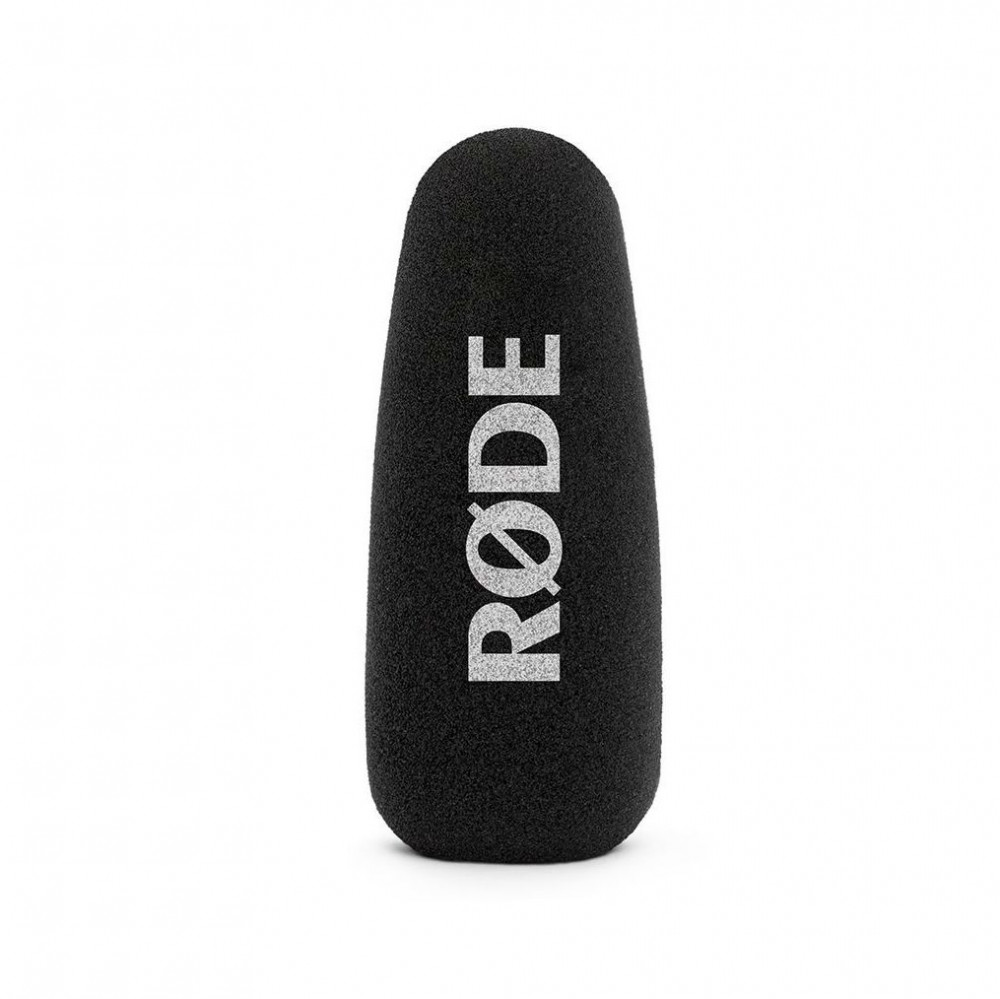

1 x WS10
1 x ZP1

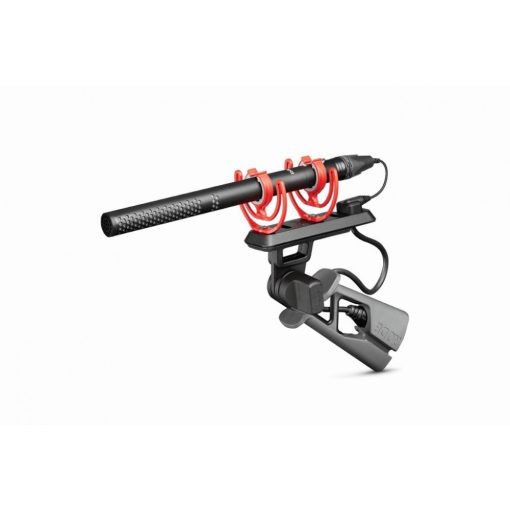

1 x PG2R
_250x260.png)

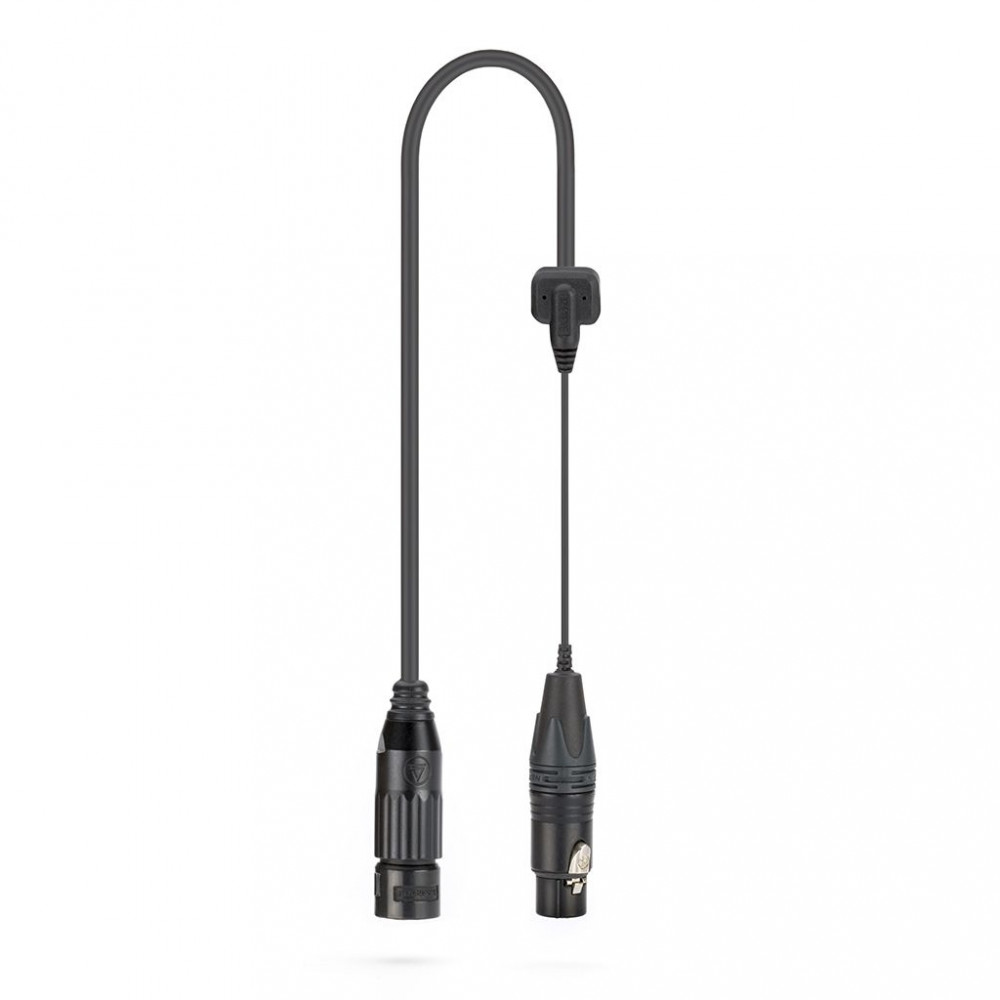

1 x PG2-R Pro Cable
