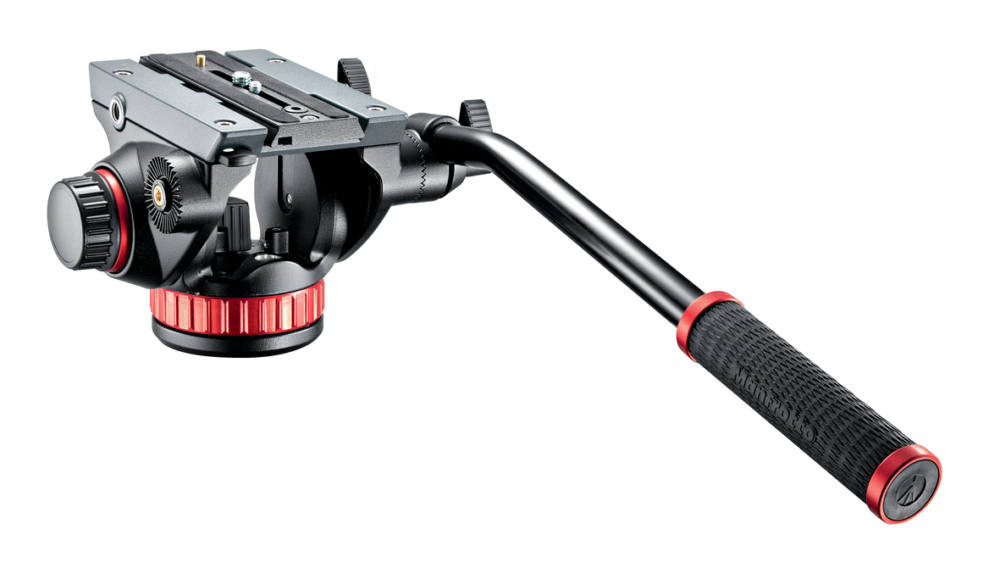

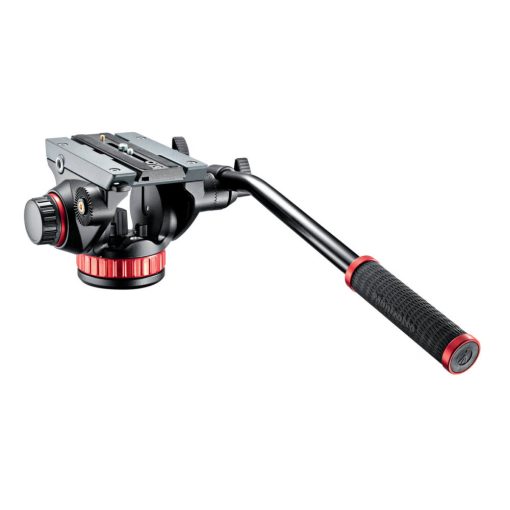

The Manfrotto 502 Fluid Video Head with flat base features variable fluid drag system for pan and tilt movements that's cleverly incorporated into the design.
It's ideal for the latest camcorder and HDSLR cameras supplied with external accessories. It has a maximum capacity of 7kg and features a Ø75mm half ball connection to ensure compatibility with most equipment today.
This video head also has a fixed counterbalance system of 4 Kg Last but not least, 3/8'' Easy Link attachment points allow an external monitor or other accessory equipment to be fitted.
Specifications
Safety Payload UNI/PdR 105:2021
10 kg
Counterbalance System
Fixed
Counterbalance Weight
4 kg
Bubble Spirit Level (No.)
1
Safety Payload Weight
6 kg
Top Attachment
1/4″ screw, 3/8″ screw
Head Type
Video/Fluid Head
Maximum Working Temperature
60 °C
Minimum Working Temperature
-20 °C
Pan Drag
continuously adjustable from 0 to max level
Tilt Drag
continuously adjustable from 0 to max level
Accessory Compatibility
MVAPANBARM; MVAPANBARL; 502HLV; 509HLV; 520BALL, 520BALLSH
